خانه /محصولات/دستگاه قالب گیری تزریقی پری فرم PET/Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity

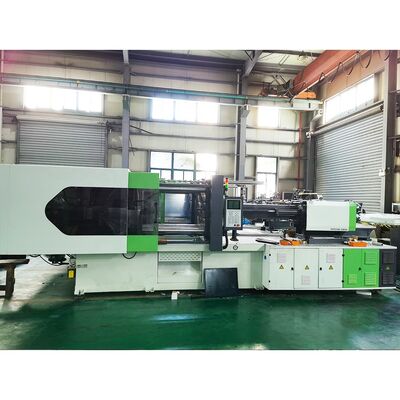

Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity

$56,800/sets 1-2 sets
قیمت
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
پلاستیک پردازش شده: PET
سبک: افقی
فاصله بین میله های کراوات (عرض) (میلی متر): 630 میلی متر
فاصله بین میله های کراوات (ارتفاع) (میلی متر): 600 میلی متر
ظرفیت پلاستیک سازی (گرم در ثانیه): 543
ارتفاع قالب (میلی متر): 300 - 600 میلی متر
شماره اجکتور: 8+1
ضربه اجکتور (میلی متر): 180 میلی متر
نیروی اجکتور (kN): 100 کیلو
حجم شات نظری (cm³): 1262.5 سانتی متر مربع
نرخ تزریق (گرم در ثانیه): 543 گرم در ثانیه
نوع ماشین: هیدرولیک، برق، مکانیک
وزن تزریقی (گرم): 1515 گرم
سرعت پیچ (rpm): 0 - 200 دور در دقیقه
قطر پیچ (میلی متر): 75 میلی متر
نسبت L/D پیچ: 24
فاصله بین میله های کراوات: 630x600 میلی متر
وزن (کیلوگرم): 8700 کیلوگرم
محل مبدا: جیانگ سو، چین
استروک باز (میلی متر): 520 میلی متر
شماره مدل: HPET1500/288S7
brand name: Dawson
توان (کیلووات): 76.5 کیلو وات
گارانتی: 1 سال
نکات کلیدی فروش: بهره وری بالا
گزارش تست ماشین آلات: ارائه شده است
بازرسی خروجی ویدیویی: ارائه شده است
اجزای اصلی: موتور ، پمپ ، دنده ، PLC ، گیربکس ، پیچ
اندازه گردن پیش فرم: 20 تا 120 میلی متر
وزن پیش فرم: 8 تا 100 گرم
زمان چرخه: 8 تا 15 ثانیه / شات
خروجی ساعتی: 10000 ~ 20000 عدد در ساعت

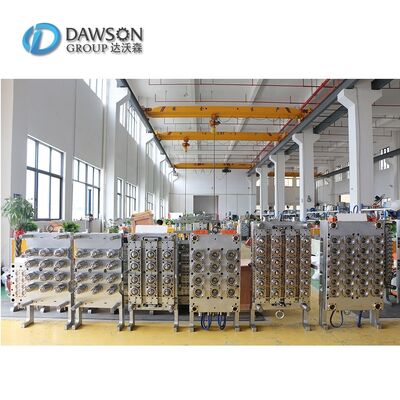

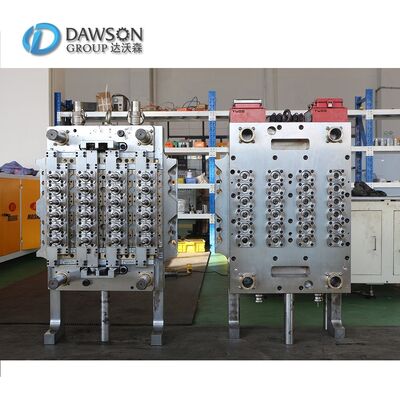

حفره قالب پیش ساخته: 32 حفره، 48 حفره، 64 حفره، 72 حفره ...
نوع موتور: سروو موتور
مواد خام: گرانول رزین PET
ابعاد ماشین: 6.8*1.6*2.1 متر

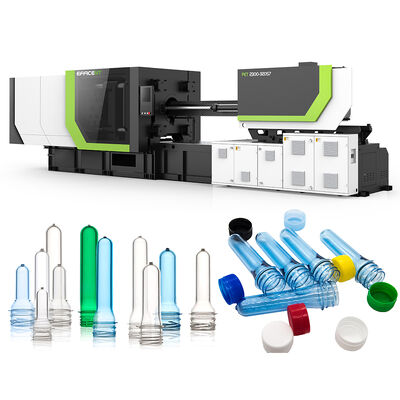

محصول: پریفرم PET برای تولید بطری نوشیدنی
وضعیت: جدید
تایپ کنید: تزریق پیش فرم
صنایع قابل اجرا: کارخانه تولیدی، کارخانه غذا و نوشیدنی، مزارع، خرده فروشی، انرژی و معدن، فروشگاه های مواد غذایی و آشا
مکان نمایشگاه: هیچ کدام
گارانتی قطعات اصلی: 1 سال
برجسته کردن:

543 g/s Plasticizing Capacity PET Preform Injection Molding Machine,Horizontal Style PET Preform Machine,High Productivity Injection Molding Machine

,

Horizontal Style PET Preform Machine

,

High Productivity Injection Molding Machine
اطلاعات اولیه
گواهی: CE TUV ISO
پرداخت
جزئیات بسته بندی: دستگاه قالب گیری تزریق با فیلم پلاستیکی بسته بندی شده است. ماشین آلات کمکی و قطعات یدکی با جعبه های
قابلیت ارائه: 20 ست/ست در ماه
توضیحات محصول
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 0
Products Description


DAWSON MACHINERY & MOULD GROUP

Specially designed for PET Bottle Prefrom Injection Molding Machine

PET preform high-speed injection machine improves the production efficiency. Under the same Fixed cost, you can produce more bottle embryos pet preform and generate more profits through high-speed PET preform injection molding machine!

Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 1
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 2
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 3
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 4
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 5
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 6
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 7
Technical Parameters
INJECTION UNIT
HPET1500/288S7
HPET1500/328S7
HPET2300/S328S7
HPET3100/S328S7
Screw diameter
mm
75
75
83
95
Injection pressure
Mpa
118
118
138
105
Screw L/D ratio
L/D
24
24
24
24
Injection rate
g/s
543
680
580
760
Shot volume(theoretical)
cm³
1262.5
1262.5
1974.2
2585.8
Shot weight
g
1515
1515
2369
3103
oz
53.4
53.4
83.6
109.5
Clamp tonnage
KN
2880
3280
3280
3280
Opening stroke
mm
520
590
590
590
Space between tie-bars
mm
630 * 600
680 * 680
680 * 680
680 * 680
Platen size
mm
900 * 870
990 * 990
990 * 990
990 * 990
Mould Height
mm
300 - 600
300 - 660
300 - 660
300 - 660
Ejector stroke
mm
180
200
200
200
Ejector tonnage
KN
100
177
177
177
Ejector pins
-
8+1
12+1
12+1
12+1
Motor power
KW
36.5+40
39.4+40
39.4+56.3
39.4+72
Hydraulic pressure
MPa
16
16
16
16
Oil tank capacity
L
450
500
500
500
Heat power
KW
30.7
30.7
35.7
45.3
Machine dimension
m
6.8*1.6*2.1
7.2*1.7*2.05
7.8*1.7*2.05
8.0*1.7*2.05
Machine weight
t
8.7
11.8
12.1
12.3
Standard Feature
Injection Molding Machine Standard Feature
CLAMPING UNIT
1. New type 5-point toggle device with the advantage of stable movement curve and gentle shock
2. High-quality mold platen with enough intensity to ensure no out of shape if high-pressure clamping
3. Hard chrome plated high tensile strength tie bars made of superior alloy with a good wear and corrosion resistance
ability
4. Wear-resistant guide for moving platen
5. Transducer control clamping stroke
6. Many step controls for speed and pressure of clamping and opening
7. Ejection device offer dwell, single, more, vibration function
8. Differential high-speed clamping
9. Low pressure mold protection function
10. Hydraulic mold height adjustment derived by gear with rough and fine operation
11. Mechanical and electrical dual safety interlock
12. Automatic centralized lubrication system with far pressure detector
HYDRAULIC UNIT
1. Proportional pressure and flow control with the advantage of fine adjustment and high precision
2. Know-how manifold design, compact, reasonable and fast respond
3. Imported world famous hydraulic valves
4. Imported world famous hydraulic sealing rings
5. Import technology hydraulic hose and fittings
6. Low noise hydraulic system
7. Oil tank with inner stainless-steel container
8. Precision oil filter
9. Oil cooler
CONTROL UNIT
1. 1. The computer is imported from Industry family. The LCD displaying screen with high clarity has Chinese and English
language to display
2. World famous electrical components
3. Close-loop PID temperature control with the advantage of high precision.
4. Deviation preset between high and low temperature. And break control for temperature sensor.
5. Alarming system in case of cold start and no material in hopper
6. Transducer control the injection and opening stroke to accuracy of ±0.05mm
7. 99 steps speed control for increasing and reducing to suit for different technology demands
8. Self-diagnostic and trouble alarm function
9. Parameters lock function to avoid being changed
10. 100 sets of production parameters can be stored into the computer memorial software
11. Machine can record the quantity of products and automatically stop if up to the required quantity.
12. Emergency stop device
13. Alarm lamp
SPARE PARTS
█ Operation Manual █ Normal hopper
█ Level pad █ Heater band █ Mold clip
Details Images
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 8
Oil-electric hybrid high-speed preform injection molding machine.Special injection molding machine for fast preform.The whole machine adopts the design style of European style, and the appearance is beautiful and high-end.

The safety door glass is made of PC board material, which has good strength and high transparency, while most of the injection molding machines in the same industry use acrylic board, which has poor strength, vulnerable parts, and poor transparency.


The blanking plate is heightened with two water pipe perforations, which is convenient for connecting the water inlet and outlet pipes
of the mould.




For models above 320 tons, the base of the pallet is lengthened to allow the weight of the reducer to be distributed on the base.
Otherwise, the reducer of a large preform machine is heavy and the weight is distributed on the drive shaft, which is easy to
deform and break. (Exclusive design of EFFICENT type）

The solid state relay is used, which has a long service life, while most injection molding machines use thermal contactors, which are
easily damaged due to the high frequency of opening and closing.




The casting of the direct injection table is specially set at two supporting points to prevent the molten glue servo motor from
sinking due to its own weight, which will cause the drive shaft connecting the motor and the reducer to break. (Exclusive design
of EFFICENT type)




The surface of the injection machine frame is sprayed with patterned iron plate, while the domestic injection molding machine uses
patterned aluminum plate, which avoids the high-temperature hot material when starting and stopping, and the cleaning material is
easy to deform and warp when it falls on the patterned aluminum plate, and the patterned iron plate has strong high temperature
resistance , to circumvent this problem.
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 9
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 10



The double-injection structure is adopted to ensure the stability of the forward and backward movements of the injection platform.







The standard high-quality ceramic heating ring has good heat preservation effect, avoids large temperature deviation from affecting
the PET bottle preform molding process, and has a long service life.






Between the safety door sheet metal and the pc transparent board, a special UV process is used, and a black frame is added around
it to increase the overall aesthetics. (Exclusive design of EFFICENT type)

Because PET preforms are formed, the screw is long and the torque is large, and the tail of the screw is prone to twisting (the
probability of breaking is high in the same industry), so the special design of the screw tail of EFFICENT has a longer and
thicker structure to avoid the problem of twisting of the screw tail.





Each oil plate of Ifite is treated with plating process, and the surface finish is good, while most of the injection molding machine
industry adopts simple painting method, which is low-grade and unsightly.




The oil pipe and the oil plate are all connected by high-precision G thread method, which has high precision and avoids the problem of
oil leakage. However, most of the same industry use raw tape straight thread, because the use of raw tape to enhance the sealing
method is easy to cause accidents. Oil leakage caused by the degree of looseness caused by the personal factors of the assembly workers, and the white raw tape is exposed and unsightly.
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 11
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 12
Using a specially customized high-torque motor for PET, the motor model of the screw of the same type of EFFICENT type is one or two larger than that of the same industry, ensuring sufficient torque and melting speed. And it ensures lower melt pressure and
prolongs the service life of the motor, while the frequency of motor damage due to excessive melt pressure in the same industry is very high.




The material cleaning port is specially designed under the front plate of the clamping structure, which is very convenient for
material cleaning. (Exclusive design of EFFICENT type)




The opening and closing molds, thimbles, glue injection, and electronic rulers all use imported top brand German NOVO to ensure the control accuracy of each operation, while 90% of the manufacturers in the same industry use domestic electronic rulers with international brands.
The opening and closing molds go to the oil passage, the inlet and outlet oil pipes, the oil plate and the valve diameter are one or two grades larger than those in the same industry, ensuring sufficient mold opening and closing speed, and the opening and closing speed is 40%~60% faster than the same model in the same industry



The mold opening and closing operation of 320 tons and above models is equipped with servo proportional valve structure as standard,
with fast mold opening and closing speed and high repeatability, while the injection molding machines in the same industry all
adopt directional valve structure, slow mold opening and closing speed, large position deviation, proportional valve The cost is
more than 12,000 yuan, while the directional valve is only more than 900




The injection platform adopts a dual linear guide rail structure with zero resistance, which ensures a faster injection speed, while the traditional injection molding machine adopts a guide rod structure, which has high resistance and slow injection.
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 13
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 14
The oil tank is specially designed, narrow inside and wide outside, avoiding the preform falling into the oil tank during the free fall process, rebounding to the lower hopper after sticking to the oil, and making the whole preform into waste after mixing with other clean preforms. (Exclusive design of EFFICENT type)

Using high-speed preform machine with high rigidity speed, the mold opening and closing speed is 40%~60% faster than that of preform
machines in the same industry (taking 320 tons as an example, the mold opening and closing cycle in the same industry is 3.5~4.1
seconds, and EFFICENT type only needs 2.0~ 2.3 seconds).

The base of the injection platform adopts three-point positioning on one side to fully ensure the stability of the base. All models in
the same industry adopt two-point positioning on one side.

There are many nozzle aperture specifications, including 5.5mm, 8mm, 10mm, 12mm, 16mm, and 20mm, but the assembly dimensions of the tail of the nozzle are all common, which is convenient for customers.
Model exchange
More Injection Molding Machine Applications
Injection Molding Machine Applications

Medical Appliance

Auto Parts

Packaging

Electronic Products

Optical Element

House ware

Building Components


Plastic injection molding machines are preferred for manufacturing medical products, as these machines offer high precision,
accurate, and complex injection molded parts.

Hydraulic injection molding machine is the most popular machine type, primarily because of its long service life and a wide range
of applications.The hydraulic injection molding machine consists of a fixed-speed, three-phase motor, and a variable-volume pump.

Hydraulic injection molding machines have a long life, far drive distance, and low maintenance cost.This type of machine helps in
significant reduction of production cycle time.

Customers mainly use high-tonnage hydraulic machines for molding large parts. This machine is mainly used for producing high
precision plastic components such as automotive parts, caps & closers, consumer goods, electrical & electronics goods, and medical
items.

Plastic injection molding machines are predominantly used in manufacturing automotive components, interior wrapping, and assembly
parts, such as automotive exteriors, car lenses, interior components, under-the-hood components, and filter components.A strong
shift in the use of plastics instead of iron and steel in the automotive industry is expected to drive the plastic injection
molding machine market during the forecast period.

Stringent government regulations have forced automotive manufacturers to use plastics instead of other materials such as iron and
steel.Rapid economic growth, improved infrastructure, and rising middle-class population in emerging economies have led to an
increase in vehicle production and sales, which, in turn, increase the demand for plastic injection molding machines.
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 15
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...

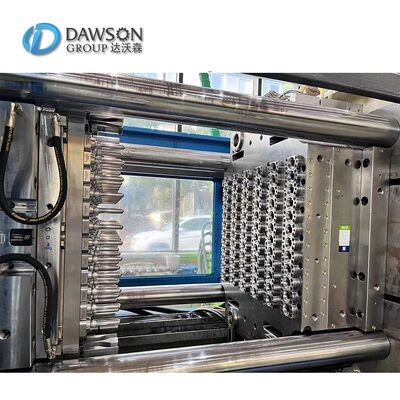

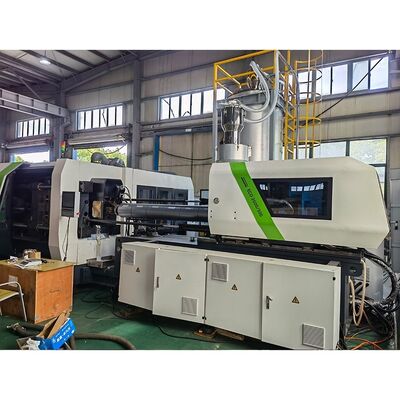

Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 16

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
injection molding machine, blow molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 17
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 18
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 19
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 20
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 21
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 22
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 23
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 24
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 25
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 26
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 27
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 28
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 29
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 30
Our Service
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 31
Horizontal PET Preform Injection Molding Machine with 543 g/s Plasticizing Capacity for High Productivity 32
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we can source the auxiliary equipment for customers. We can ship the full set of machines after testing in our factory. It will save a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
برچسب:

820 میلی متر دستگاه قالب گیری تزریق پلاستیک

دستگاه دمش تزریق 6t

دستگاه قالب گیری تزریق 100 دور در دقیقه

محصولات توصیه شده
با ما در تماس باشید
تماس با شخص : Mrs. Sara
تلفن : 15850801260
حرف باقی مانده است(20/3000)
در تماس باشید
اتاق 1105، بلوک B، مرکز تجارت Huijin، شماره 20# جاده Renmin East، شهر Yangshe، شهر Zhangjiagang، Jiangsu، چین
sara@dawson-plastic.com
15850801260
در باره
نمایه شرکت کارخانه تور کنترل کیفیت تماس با ما
محصولات
دستگاه قالب گیری اتوماتیک ضربهدستگاه قالب گیری ضربه اکستروژنجری می تواند ماشین قالب گیری را منفجر کند همه دسته بندی ها
برای ما ایمیل کنید
نیاز خود را با ما در میان بگذارید. ما بهترین محصولات را با شما متصل خواهیم کرد.
نقشه سایت │ سایت موبایل │ سیاست حفظ حریم خصوصی
چین خوب کیفیت دستگاه قالب گیری اتوماتیک ضربه تامین کننده. © 2021 - 2026 Dawson Machinery & Mould Group Co.,Ltd. All Rights Reserved.
