خانه /محصولات/قالب بطری پلاستیکی/Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head

Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head

$15,000/sets 1-2 sets
قیمت
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head
امکانات گالری توضیحات محصول درخواست نقل قول
امکانات
مشخصات
بازرسی خروجی ویدیویی: ارائه شده است
گزارش تست ماشین آلات: در دسترس نیست
اجزای اصلی: دونده، چرخه روغن
پلاستیک پردازش شده: PP، HDPE، PC، ABS، PVC، PE، ABS/PP، PE/PP، HDPE/PP
محل مبدا: جیانگ سو، چین
brand name: DAWSON
ولتاژ: 380 ولت / 50 هرتز
ابعاد (l*w*h): 900*500*1200 میلی متر
نیروی بستن (kN): هیچ کدام
برند plc: خیر
نسبت L/D پیچ: 25
قطر پیچ (میلی متر): 100 میلی متر
خروجی (کیلوگرم در ساعت): 60 کیلوگرم در ساعت
اتوماسیون: خودکار
شماره منطقه گرمایش پیچ: 4
قدرت گرمایش پیچ (کیلووات): 5 کیلو وات
قدرت موتور اکسترودر (کیلووات): 15 کیلووات
اندازه صفحه قالب (عرض) (میلی متر): 290 میلی متر
اندازه صفحه قالب (ارتفاع) (میلی متر): 320 میلی متر
فشار هوا (MPa): 0.8 مگاپاسکال
مصرف هوا (m³/min): 0.6 متر مکعب در دقیقه
قدرت گرمایش دای هد (کیلووات): 22 کیلووات
توان (کیلووات): 35
وزن (t): 2
نکات کلیدی فروش: عمر طولانی خدمات
گارانتی: 1 سال
مواد: 42 CrMo
نرم افزار طراحی: طرفدار E
برنامه: دستگاه قالب گیری دمشی اکستروژن
شماره سر جان: 1
فاصله مرکز سر قالب: طبق نمونه
مواد پلاستیکی: HDPE/PP/PVC/ABS/LDPE
نام محصول: سر بمیر
مرگ سر زندگی: حداقل 8 سال
درمان سطحی قالب: لهستانی آینه
وضعیت: جدید
گارانتی قطعات اصلی: 1 سال
صنایع قابل اجرا: کارخانه تعمیر ماشین آلات، کارخانه تولید، کارخانه مواد غذایی و نوشیدنی
مکان نمایشگاه: مکزیک، کلمبیا، آفریقای جنوبی
سال: 2023
حجم قطعه توخالی: 30 لیتر
ظرفیت انباشته (L): 6 L
بندر: شانگهای
برجسته کردن:

Accumulator Type Die Head,Single Layer Die Head,50L Capacity Extrusion Blow Molding Die Head

,

Single Layer Die Head

,

50L Capacity Extrusion Blow Molding Die Head
اطلاعات اولیه
گواهی: CE
پرداخت
جزئیات بسته بندی: سر قالب دستگاه قالب گیری اکستروژن در جعبه های چوبی استاندارد صادراتی بسته بندی می شود
قابلیت ارائه: 20 ست/ست در ماه
توضیحات محصول
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 0
Products Description


DAWSON MACHINERY & MOULD GROUP

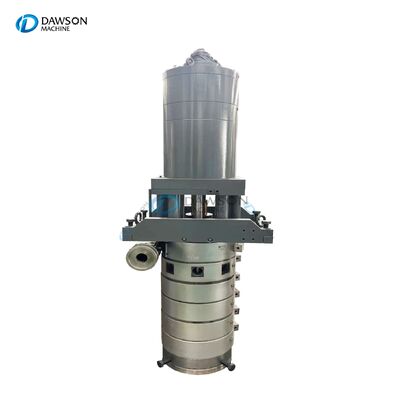

Extrusion Blow Molding Machine Die Head
Die head, is a very important part of extrusion blow molding machine. From the die head, the melted resin come out as a tubular parison. Thought the die head, we can adjust the thickness of the parison for different products. The mould pick up the parison come out from the die heads, then forming to be the finished products.
There are not only one division for the die head. If we divide by processing method, there are continuous type die head and
accumulator type die head.
If we divide based on head numbers, then there are single die head and multi die head, we have 2/3/4/6/8/10/12 heads for different product application. And we also can divide the die heads by layer number, there are die head for monolayer and die head for multi-layer.
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 1
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 2
Technical Parameters
Type of die head by processing method
continuous type die head, accumulator type
Type of die head by head numbers
1/2/3/4/6/8/10/12
Type of die head by layer numbers
1/2/3/4
Center distance
Multi heads die head, center distance can be customized
Material suitable
HDPE/LDPE/PP/PVC/EVOH/TPU/TPV/ABS/Tritan/PPSU, etc.
Material of die head
42CrMo steel
Application
Extrusion blow molding for plastic bottles, jerry cans, drums, IBC tanks, toys, table sheets, chairs, floaters, traffic barriers, etc.

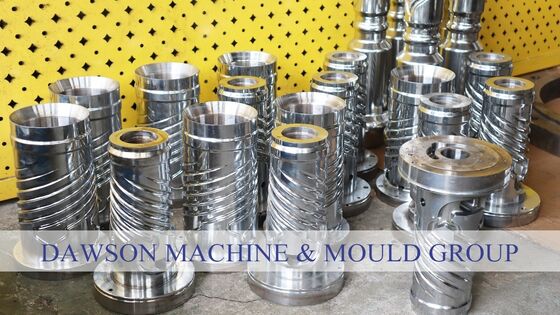

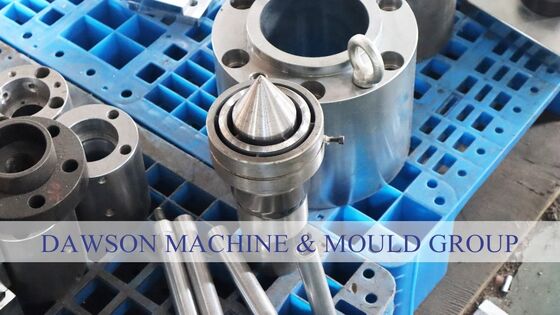

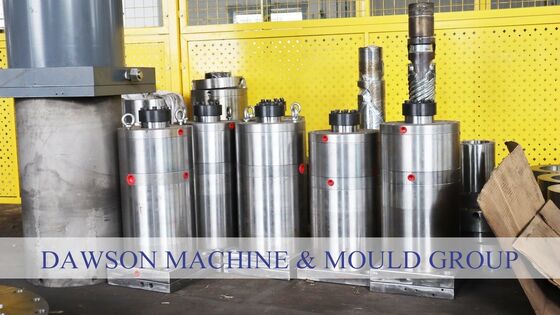

Details Images
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 3
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 4
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 5
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 6
Photos Reference
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 7
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 8
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 9
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 10
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 11
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 12
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 13
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 14
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 15
Professional Workshop
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 16
Company Profile


DAWSON MACHINERY & MOULD GROUP


Our customers are all around the world.

Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru....

We have our own service team in
Saudi Arabia, Colombia, Panama, South Africa ...
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 17

DAWSON MACHINE & MOULD GROUP
located in Zhangjiagang city, have more than 18 years' experience in the field of plastic machinery,
blow molding machine, injection molding machine, PET blow molding machine, injection blow molding machine, during the past 18 years, we always force our energy into new areas of plastic machinery, plastic packaging machinery, to update the technology, to learn advanced experience,
to confirm new theory and new design, we are forming a unique competitive advantage of our owns.
The machines from our company carry good quality and effective after-sales service, upon the market,
customers from more than 45 countries, we provide complete solution for your plastic industry
business, as well as all sorts of technical support & after-sale services!

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!

Customer Photos
We committed to providing customers with plastic machinery & equipment production lines beyond expectations.

Customer satisfaction is our eternal pursuit...
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 18
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 19
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 20
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 21
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 22
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 23
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 24
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 25
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 26
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 27
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 28
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 29
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 30
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 31
Our Service
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 32
Accumulator Type Single Layer 50L Plastic Drum Making Extrusion Blow Molding Die Head 33
FAQ

Q: Can we visit your factory?

Sure. We located in Zhangjiagang city which is very near Shanghai. For overseas customers, you can fly to Shanghai Pudong
International Airport. We can
pick you up in the Airport. (or Hongqiao International Airport. ) We also provide visit online by video.

Q: How can we get the exact price of plastic machine?

Contact us with the products size, shape, annual quantity and photo if possible. We can recommend our machine models with
quotation.

Q: Do you provide any spare parts with machine?

Yes, we offer all necessary spare parts before shipment.(contact us for packing list )

Q: How about your after-sale service ?

We offer manual instruction and engineer training before loading,after shipment we provide 24 HRS online support, video technical
support or field installation assist.

Q: What is the lead time?

For customized machine, it takes about 45-50 days after deposit. For stock machine, fast shipment. ( The actual production cycle will vary according to the degree of customization.)

Q: What is the warranty period for your machine ?

12 months warranty for components and technical support .

Q: Do you provide custom machines?

Most of our machines are customized. Our goal is efficiency and stable performance. We design the machines according to customers
products to meet customer' needs.

Q: How can we install the machine when it arrives?

We can send experienced technicians to customer's country for guiding the installation and commission the machine, also train the
customer's employees.

Q: What's DAWSON's advantage?

DAWSON provide customers with turnkey projects. Including plant design, plastic machine and mold installation, debugging, also we
can source the auxiliary equipments for customers. We can ship the full set of machines after testing in our factory. It will save
a lot of cost and time.

DAWSON will be your reliable friend in China, and we will always do our best to give you max support!
